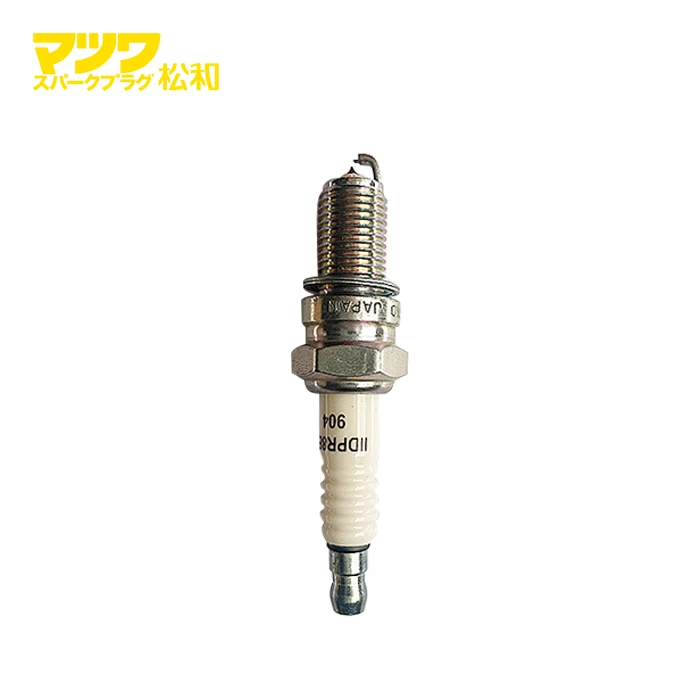

1995 Honda Shadow 1100 Spark Plugs, Compatible Model: 904 IIDPR8EA9

Standard: GB/T7825-2017

Certification: IAIF 16949:2016

Product details:904 IIDPR8EA9
Item No.: 904 Model: IIDPR8EA9
1. Product heat value: 8
2. Thread size: M12
3. Thread length: 19 mm
4. Hex socket size: 18 mm
5. Installation torque: 15–20 N·m (use a torque wrench; over-tightening may damage the cylinder head threads)
6. Material: Dual iridium

1995 honda shadow 1100 spark plugs manufacturers

1995 Honda Shadow 1100 Spark Plug 904 IIDPR8EA9 Features:

1. This spark plug features center and side electrodes made of precious iridium alloy. Iridium offers excellent properties: with a melting point as high as 2,454°C, it maintains outstanding hardness and chemical stability even at temperatures around 2,000°C, along with strong corrosion resistance-making it ideal for critical components such as aerospace engine parts and spark plug electrodes.
2. Utilizes isostatic-pressed ceramic, providing superior insulation, high heat resistance, high voltage tolerance, and excellent shock resistance.
3. Service life can reach 50,000 to 80,000 kilometers.

1995 honda shadow 1100 spark plugs factory

Model 904 IIDPR8EA9, suitable for: New Honda: SDH125 Wanlixing,125-39 Xin Fengrui, 125-49/50 Jinfengrui, -7 Shendiao, -42 Weimeng -46/52 Ruijian, -53 Ruibiao; Wuyang Honda: WH125 (Fengmang 125), WH125- (Zhuiying 125), WY125-3 (CG125), WY125-F/WY125-H (Xingeannian125), WH125-B/11 (Fengyi); Jialing Honda: CH125 Dashashu, CG125; 1995 Honda Shadow 1100; Chongqing Jianshe Yamaha: SR150, SRZ150 Jinbao, SRV200 J, JYM250 Jinlong; Dajiang: HJ150 series, HJ125 series, GN125 Imported Honda. Our company has over 30 of production experience. The company covers an area of 8,000 square meters, with 30 technical personnel, 70 assembly workers, and 8 senior. The company mainly produces various spark plugs for automobiles, motorcycles, generators, model aircraft, small machinery, etc. Based on the Chinese after-sales and supporting market, our products exported worldwide.

Our company has over 30 years of production experience. The company covers an area of 8,000 square meters, with a current staff 30 technicians, 70 assembly workers, and 8 senior managers. The company mainly produces various types of spark plugs for automobiles, motorcycles, generators, model aircraft, and machinery. Based on the Chinese after-sales and supporting markets, our products are exported worldwide.

Product model	Material	Product size	Installation torque	Applicable vehicle models
MCR7HSA 702	Nickel alloy	Thread length：12.5mm Thread diameter：10mm Wrench size：16mm	10-15N·m	70cc/90cc/100cc/110cc
MCR7HIX 802	Single iridium	Thread length：12.5mm Thread diameter：10mm Wrench size：16mm	10-15N·m	70cc/90cc/100cc/110cc
IICR7HSA 902	Double iridium	Thread length：12.5mm Thread diameter：10mm Wrench size：16mm	10-15N·m	70cc/90cc/100cc/110cc
MDR8EA 703	Nickel alloy	Thread length：19mm Thread diameter：12mm Wrench size：18mm	15-20N·m	125cc/250cc/300cc
IIDR8EA 903	Double iridium	Thread length：19mm Thread diameter：12mm Wrench size：18mm	15-20N·m	125cc/250cc/300cc
MDPR8EA-9 704	Nickel alloy	Thread length：19mm Thread diameter：12mm Wrench size：18mm	15-20N·m	125cc/250cc/300cc
MDPR8EIX-9 804	Thread diameter	Thread diameter	15-20N·m	125cc/250cc/300cc
IIDPR8EA 904	Double iridium	Thread length：19mm Thread diameter：12mm Wrench size：18mm	15-20N·m	125cc/250cc/300cc
MCR8E 705	Nickel alloy	Thread length：19mm Thread diameter：10mm Wrench size：16mm	10-15N·m	New Dazhou Honda SDH150/ Suzuki UC125
MCR8EIX 805	Single iridium	Thread length：19mm Thread diameter：10mm Wrench size：16mm	10-15N·m	New Dazhou Honda SDH150/ Suzuki UC125
IICR8E 905	Double iridium	Thread length：19mm Thread diameter：10mm Wrench size：16mm	10-15N·m	New Dazhou Honda SDH150/ Suzuki UC125
MCPR8EIX-9 806	Single iridium	Thread length：19mm Thread diameter：10mm Wrench size：16mm	10-15N·m	Xindazhou Honda CBX150/ Xindazhou Little Warrior SDH125
IICPR8EA-9 906	Double iridium	Thread length：19mm Thread diameter：10mm Wrench size：16mm	10-15N·m	Xindazhou Honda CBX150/ Xindazhou Little Warrior SDH125
MCR9EIX 807	Single iridium	Thread length：19mm Thread diameter：10mm Wrench size：16mm	10-15N·m	HONDA CBR series /VTR series YAMAHA FZR/XJR/YZF/FJR
SIICR9E 907	Double iridium	Thread length：19mm Thread diameter：10mm Wrench size：16mm	10-15N·m	HONDA CBR series /VTR series YAMAHA FZR/XJR/YZF/FJR
IIER9EHS 912	Double iridium	Thread length：19mm Thread diameter：8mm Wrench size：13mm	8-10N·m	Honda VFR400/Zongshen TC380
MCR9EHS 708	Nickel alloy	Thread length：19mm Thread diameter：10mm Wrench size：16mm	10-15N·m	Honda VFR400/Zongshen TC380 Honda VFR400/Zongshen TC380
MCR9EHIX-9 808	Single iridium	Thread length：19mm Thread diameter：10mm Wrench size：16mm	10-15N·m	Honda VFR400/Zongshen TC380
IICR9EHIX-9 908	Double iridium	Thread length：19mm Thread diameter：10mm Wrench size：16mm	10-15N·m	Honda CBR250/VTR250
MILMAR8A9 809	Single iridium	Thread length：27mm Thread diameter：10mm Wrench size：14mm	10-15N·m	Yamaha MT-07 BMW K1600GT
IILMAR8A9 909	Double iridium	Thread length：27mm Thread diameter：10mm Wrench size：14mm	10-15N·m	Yamaha MT-07 BMW K1600GT
SIILMAR9A9S 910	Double iridium	Thread length：26.5mm Thread diameter：10mm Wrench size：14mm	10-15N·m	Honda KTM350 African Parallel Bars 1100L/ADV
MSILMAR9A9S 810	Single iridium	Thread length：26.5mm Thread diameter：10mm Wrench size：14mm	10-15N·m	Honda KTM350 African Parallel Bars 1100L/ADV
IILKAR8A-9 911	Double iridium	Thread length：26.5mm Thread diameter：12mm Wrench size：14mm	15-20N·m	KTM Duke 250/RC390
MILMAR9D-T 813	Single iridium	Thread length：26.5mm Thread diameter：10mm Wrench size：14mm	10-15N·m	BMW Waterbird R1200GS HP41000
MLMDR10A-JS 714	Nickel alloy	Thread length：26.5mm Thread diameter：10mm Wrench size：13.5mm	10-15N·m	Ducati V4
MA6TC 701	No resistance	Thread length：12.5mm Thread diameter：10mm Wrench size：16mm	10-15N·m	70cc/90cc/100cc/110cc
